مشخصات کلی
کارایی و رده بندی
طراحی و گرافیک, ,, کاربری عمومی, ,, کاربری مالتی مدیا
وضعیت محصول
اُپن باکس, ,, نو، بهمراه کارتن
برند و سری
شرکت اچ پی Hewlett-Packard Company – HP, ,, کیس اچ پی پرو دسک – HP ProDesk PC
نوع و مدل کیس

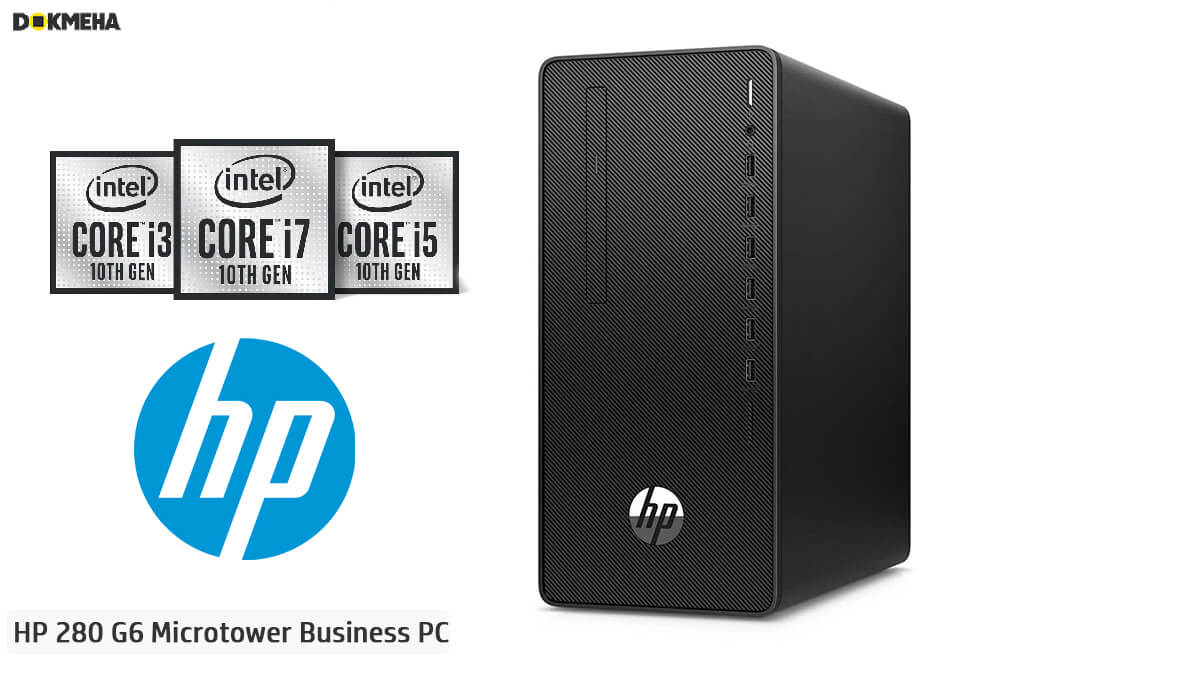

HP 280 Pro G6 Microtower Business PC, ,, Mid-Tower
سیستم عامل های قابل نصب
Windows 10 Pro 64 – HP recommends Windows 10 Pro for business, Windows 10 Home 64, FreeDOS
نسل پردازنده اینتل
10th Generation Comet Lake
انواع پردازنده های قابل پشتیبانی به همراه تکنولوژی پردازنده
Intel® Celeron® Processors
, CPU Intel Celeron G5900 Dual Core 3.4GHz 2666MHz 58W (3.4GHz, 2MB cache, 2 cores), CPU Intel Celeron G5905 Dual Core 3.4GHz 2666MHz 58W (3.4GHz, 2MB cache, 2 cores), Intel® Pentium® Processors
, CPU Intel Pentium Gold G6400 Dual Core 4.0GHz 2666MHz 58W (4.0GHz, 4MB cache, 2 cores), CPU Intel Pentium Gold G6600 Dual Core 4.2GHz 2666MHz 58W (4.2GHz, 4MB cache, 2 cores), Intel 10th Processors Intel® Core™ i3
, CPU Intel Core i3-10100 4C 3.6GHz 2666MHz 65W (3.6GHz, turbo up to 4.1GHz, 6MB cache, 4 cores), Intel® Core™ i5
, CPU Intel Core i5-10400 6C 2.9GHz 2666MHz 65W (2.9GHz, turbo up to 4.0GHz, 12MB cache, 6 cores), CPU Intel Core i5-10500 6C 3.1GHz 2666MHz 65W (3.1GHz, turbo up to 4.2GHz, 12MB cache, 6 cores), Intel® Core™ i7
, CPU Intel Core i7-10700 8C 2.9GHz 2933MHz 65W (2.9GHz, Up to 4.8GHz with Intel® Turbo Boost4 , 16MB cache, 8 cores)
چیپ ست Chipset
Intel® H470 Chipset
انواع حافظه رم قابل نصب
Maximum
64 GB, Number of slots
(2) DIMM, Up to 2933 MT/s (for Intel Core i7-10700), Up to 2666 MT/s (for Intel Core i5, i3, Pentium, and Celeron), Configurations
, 4GB DDR4-2933 UDIMM NECC (1 x 4 GB), 8GB DDR4-2933 UDIMM NECC (1 x 8 GB), 8GB DDR4-2933 UDIMM NECC (2 x 4 GB), 16GB DDR4-2933 UDIMM NECC (2 x 8 GB), 16GB DDR4-2933 UDIMM NECC (1 x 16 GB), 64GB DDR4-2933 UDIMM NECC (2 x 32 GB), 4GB DDR4-2666 UDIMM NECC (1 x 4 GB), 8GB DDR4-2666 UDIMM NECC (1 x 8 GB), 8GB DDR4-2666 UDIMM NECC (2 x 4 GB), 16GB DDR4-2666 UDIMM NECC (1 x 16 GB), 16GB DDR4-2666 UDIMM NECC (2 x 8 GB), 64GB DDR4-2666 UDIMM NECC (2 x 32 GB)
گزینه های ذخیره سازی (نوع و مقدار هارد درایو)
SATA drives
, 500GB, 7.2 K rpm, 8.89 cm (3.5 in), 1TB, 7.2 K rpm, 8.89 cm (3.5 in), 2TB, 7.2 K rpm, 8.89 cm (3.5 in), Solid State Drives (SSD)
, 128GB M.2 2280 PCIe NVMe TLC SSD, 256GB M.2 2280 PCIe NVMe TLC SSD, 512GB M.2 2280 PCIe NVMe TLC SSD, Optane memory
, Intel 16 GB Optane Memory (type M.2 2280)
شتاب دهنده حافظه
Optane memory
Intel 16 GB Optane Memory (type M.2 2280)
مدل، نوع و میزان حافظه گرافیک قابل نصب
Integrated
, Intel® UHD, Graphics 630 (integrated on 10th Core i processors and Pentium Gold G6600), Intel® UHD, Graphics 610 (integrated on Pentium Gold G6400 and Celeron), Discrete Graphics
, AMD Radeon™ R7 430 2GB GFX, AMD Radeon™ RX550X 4GB GFX, AMD Radeon™ 520 1GB GFX, NVIDIA® GeForce® GTX1660 Super 6GB GFX
ورودی / خروجی کارت گرافیک
بستگی دارد به کارت گرافیک انتخابی, ,, D-Sub یا VGA, ,, Display Port, ,, HDMI
کنترلر صدا و اسپیکر
کنترلر صدا
Audio (integrated), Realtek ALC3601, (1) Front headset connector supports a CTIA style headset and is retaskable as a Line-in, Line-out, Microphone-in or Headphone-out port, (1) Optional external speaker jack, اسپیکر
, 2W per channel class D stereo amplifier for the internal speakers only
ورودی و خروجی کیس
جلوی کیس
, 1 headphone/microphone combo, 4 SuperSpeed USB 5Gbps signaling rate, 2 SuperSpeed USB 10Gbps signaling rate, پشت کیس
, 1 HDMI, 1 line in, 1 line out, 1 power connector, 1 RJ-45; 1 serial, 1 VGA, 2 USB 2.0, Video connectors
, 1 HDMI 2.0, 1 DisplayPort™ 1.4, 1 DVI-D, پورت های اختیاری
Optional rear ports and feature, (1) Rear serial port (availability varies by country/region), (1) Parallel port (optional via PCIe x1 slot), (1) PS/2 port (optional), (1) 4x Serial port (optional via PCIe x1 slot), (1) Intrusion Sensor (optional), (1) Internal Speaker (optional), Mouse and keyboard
, HP USB Keyboard; USB Business Slim Wired Keyboard; PS/2 Business Slim Keyboard, HP PS/2 Mouse, HP USB Optical Mouse, Universal USB wired optical mouse, USB Hardened Mouse, Keyboards (optional or add-on features)
, USB Business Slim Wired Keyboard, HP USB Wired Keyboard Business Slim, USB Antimicrobial Wired Keyboard (China), Business Slim PS/2 Wired Keyboard (for machine configured with PS/2 port), No Keyboard option, Mice (optional or add-on features)
, Antimicrobial USB Mouse (China), HP Optical USB Mouse, Universal Wired USB Mouse, USB Hardened Mouse (availability might vary by country/region), HP PS/2 Mouse (for machine configured with PS/2 port), No Mouse option, Media card reader
Supports SD, SDHC, and SDXC, دیواس های قابل استفاده ورودی
, HP PS/2 Business Slim Keyboard, HP USB Conferencing Keyboard, HP USB Wired Keyboard, USB Business Slim Standalone Wired Keyboard, HP USB Collaboration Wired Keyboard, HP Wireless Collaboration Keyboard, HP PS/2 Mouse, HP USB 1000 dpi Laser Mouse, HP USB Hardened Mouse, HP USB Optical Mouse, Universal USB wired optical mouse, HP USB Fingerprint Mouse, Bays
, (1) Optional SD card reader (front), (1) 9.5 mm optical drive bay, (1) 8.89 cm (3.5 in) or 6.35 cm (2.5 in) internal HDD bay, (1) 8.89 cm (3.5 in) or 6.35 cm (2.5 in) internal HDD (share bay with caddy)
Expansion Slots (سایر اسلات ها)
(1) PCI Express x16, (1) PCI Express x1, (1) PCI (for select SKUs only), (1) M.2 for WLAN, (1) M.2 2242/2280 storage, —, Expansion bays
, HDD
2 internal 3.5\ (two available), ODD
1 x 9.5 mm ultraslim (occupied)
ارتباطات
LAN
, Integrated 10/100/1000M GbE, WLAN
, Realtek 802.11a/b/g/n/ac (1×1) and Bluetooth® 4.2 Combo
درایو نوری
Optical disc drives
Slim-height Bay – supporting an optical disk drive (Optional), DVD-ROM 9.5 mm, DVD-Writer 9.5 mm
ویژگی و گزینه‌های امنیتی و مدیریتی
Integrated accessories cable lock, Lock slot, Trusted Platform Module (TPM) 2.0
ابعاد / DIMENSIONS
طول x عرض x ارتفاع HxWxD
, کیس تنها
, 15.5×30.3×33.7 cm, 6.12×11.93×13.28 in, با کارتن
—
وزن
شروع وزن استاندارد کیس از
, کیس تنها
10.4پوند ~ 4.7کیلوگرم, با کارتن
00.00پوند ~ 00.00کیلوگرم, وزن محصول با افزایش قطعات بالاتر خواهد رفت.
منبع تغذیه(Power Supply)
180W ENERGY STAR Libra2 EPA 90 (Gold) Full range 115 V/230 V, 310W ENERGY STAR EPA 90 (Gold) Full range 115 V/230 V, 500W EPA 90 (Gold) 115 V/230 V, NOTE
Power supply varies by country/region
گواهی مصرف انرژی
Energy efficiency compliance
, CCC; CE; CECP; CEL; ENERGY STAR® certified; EPEAT® 2019 registered where applicable; FCC; RoHS; SEPA; UL, Environmental
, Operating temperature
0 to 40°C; Operating humidity
10 to 90% RH
گارانتی
یک ماه مهلت تست
کدام کانفیگ
کیس اول, ,, کیس پنجم, ,, کیس چهارم, ,, کیس دوم, ,, کیس سوم
